Diaryx Writing Specification

The Diaryx Writing Format is a specific method of digital writing that makes the writing process easier and more effective. It is meant to be both human-readable and machine-parseable.

0.1 Example

Imagine you open a file or folder without any prior context. How would you understand the content of the file?

If the file was in Diaryx format, the reader would see something like this:

---
title: Thoughts about stuff
author: John Doe
created: 2025-08-25T16:24:16-06:00
updated: 2025-08-25T16:24:16-06:00
visibility:
- family
- friends
format: "[CommonMark (Markdown)](https://spec.commonmark.org/0.31.2/)"
reachable: johndoe@email.com
part_of: "[My journal](<Journal entries.md>)"
---

# Thoughts about stuff

Today I had thoughts about stuff…

Now the reader knows:

All of this information is clear and understandable even to someone who only has a plain text viewer and does not know YAML or markdown.

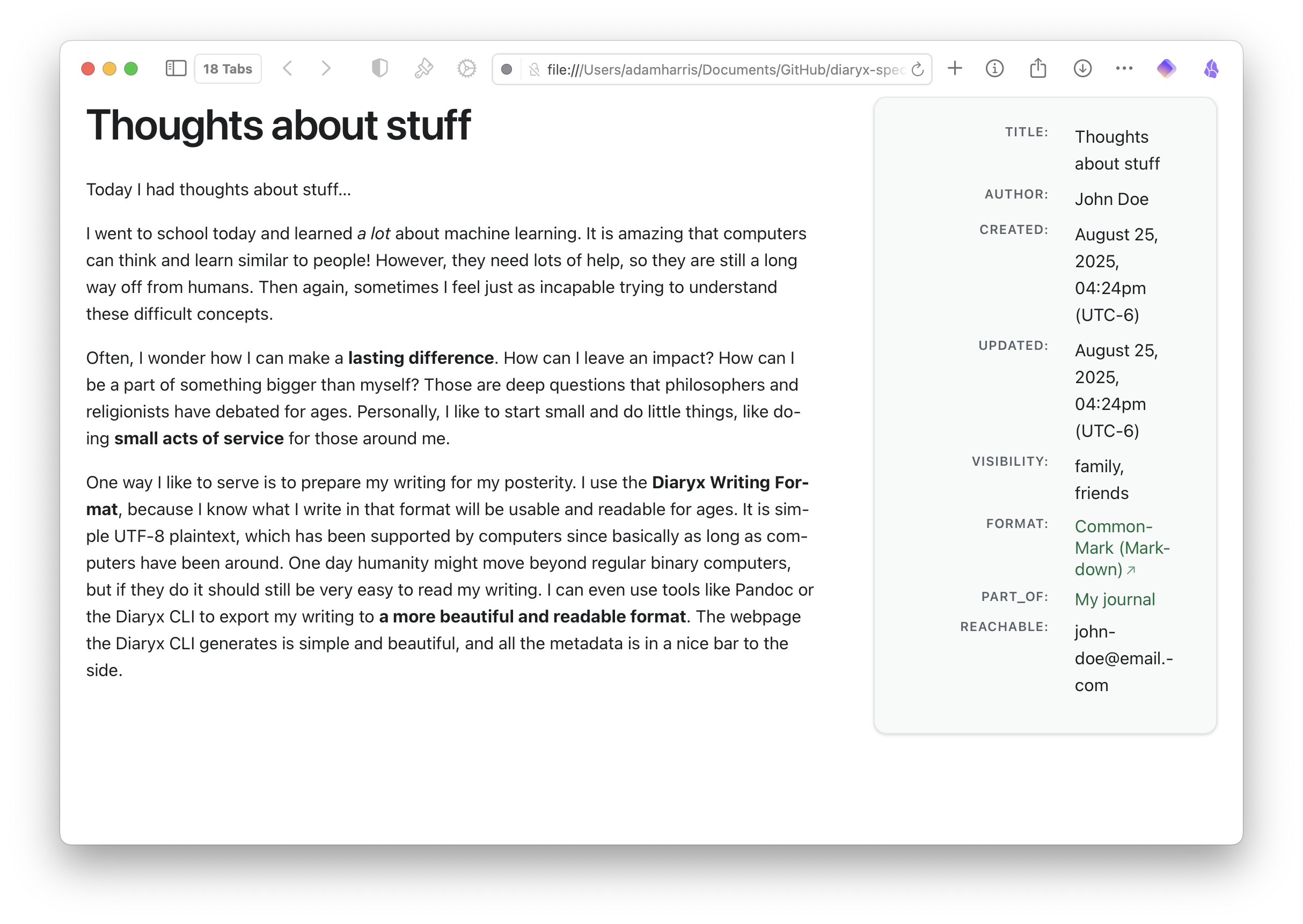

But what if I don't want to read boring plain text? Fortunately, because Diaryx uses structured markup and metadata, it is very easy to convert it to more visually pleasing formats:

0.2 Purpose

The purpose of writing is to connect the reader with the author. The Diaryx Writing Format is unique in that it places this purpose front and center. Each Diaryx document requires the author to specify the following properties:

  1. title: a short summary of the document
  2. author: the identity of the writer(s) of the document
  3. created: the time the document was first created
  4. updated: the time the document was last updated
  5. visibility: the identity of the audience/reader(s) of the document
  6. format: the format of the text body (for example, CommonMark)
  7. reachable: where this writing is accessible

Requiring explicit definitions for these values makes writing easier and more productive for the author:

It also makes writing easier to understand and more impactful for the reader:

The way Diaryx accomplishes this is simple and compatible with widely-accepted standards: a Diaryx file is simply a Markdown file with YAML frontmatter. Markdown is a widely used markup format, and YAML frontmatter is a common standard for Markdown files, widely recognized in tools such as Pandoc and GitHub. So, the Diaryx Writing Format is perhaps best understood as a YAML frontmatter schema and a collection of best practices.

As an initial example, notice that this specification is written in Diaryx Writing Format. ("Diaryx Writing Format" refers to the general format, and "Diaryx Writing Specification" refers to this specific document.)

0.3 Why is this standard needed?

  1. Digital writing has no single portable format. Note-taking apps in particular are notorious for locking users into their ecosystem. Even when a popular format such as Markdown is used, there’s no agreement on how to represent important metadata such as dates, relation to other writings, or sharing permissions. As a result, personal writings — often a person’s most important and private records — risk being lost over time.
  2. Most things people write are not intended to be public. In contrast, existing standardized writing formats are public-facing (essays, posts, microblogs, comments). HTML, APA, and MLA are all designed for public-facing or academic work. Non-public or private writing deserves the same long-term portability as published works.
  3. Recent technological advances are forcing the world to reconsider what makes writing meaningful. Most famously, applications for interfacing with large language models, such as ChatGPT, have shocked many people into wondering if essays are a dying art. The Diaryx Writing Format brings focus back on the timeless, core meaning of writing: the connection between reader and author.

The Diaryx Writing Format aims to fill these gaps by standardizing good, readable metadata practices. This helps Diaryx files be super portable and shareable, helps writers keep in mind why they are writing, and helps readers make more informed decisions about what they read.

0.4 Principles

Principles are guidelines for how this specification should be. Here are some guidelines:

0.5 YAML Frontmatter

A Diaryx file is typically a markdown file with a .md extension. In this file, there is a special section called "frontmatter." It is started and ended by triple dashes (---). Within the triple dash area is structured data written according to YAML format. YAML is a simple way to write structured data.

0.6 Character Encoding and Line Endings

The Diaryx Writing Format uses UTF-8 character encoding and prefers LF (\n) line endings.

1.0 Required Properties

In Diaryx, some properties are required and some are optional. This section discusses the required properties.

1.1 title

This is a short string representing the document. Can include special characters as long as you wrap it in quotes or backslash-escape them.

title: This is a title
title: "This { is:a } [ title:with ] <special:characters>"

1.2 author

Single string or list of strings representing author/authors of document.

# single author
author: A Single Author

# multiple authors
author:
- Author 1
- Author 2
- Author 3

# also supported:
author:
- A single author

1.3 created, updated

RFC 3339 formatted timestamps representing the creation time and update time of the file.

1.3.1 A quick overview of the timestamp format

YYYY-MM-DDTHH:mm:ss-ZZ:zz

  1. four digit year (0000-9999)
  2. dash '-'
  3. two digit month (01-12)
  4. dash '-'
  5. two digit day (01-31)
  6. letter 'T'
  7. two-digit 24-hour time (00-23)
  8. colon ':'
  9. two-digit minute (00-59)
  10. colon ':'
  11. two-digit second (00-59)
  12. plus or minus sign ('+' or '-')
  13. two-digit hour timezone difference from UTC
  14. colon ':'
  15. two-digit minute timezone difference from UTC

This is not a comprehensive review of the RFC-3339 timestamp spec, but rather a quick guide for reference.

1.4 visibility

Intended to represent who the writing is intended for. Usually a list of values, but can rarely be a single value. Each of the strings can be anything, but there are a few values reserved words with special functionalities.

1.4.1 public

visibility:
- public
- friends
# …

Function Used to indicate that the author doesn't mind allowing unrestricted access to anyone who happens to find the document.

Explanation It can be useful if the author wants to write something quickly to publish on the Internet. However, using public as the only value for visibility is strongly discouraged. Applications implementing this specification should show a warning if that is the case. This is to encourage authors to consider their audience. Authors can use values such as historians, [insert demographic group here], or whatever other value may clarify the reason why the document is public.

1.4.2 universal

visibility: universal

Function Same as public

Explanation Applies to documents of generally-agreed-upon moral or religious significance, such as the Universal Declaration of Human Rights, the Bible, and other documents of truly far-reaching influence, usually ones that have been translated into many languages. Unlike public, it is permissible to use this as the only value for visibility. Using this value means that the author truly intends the document to reach every single person ever. It is an opt-in measure so the author can say, "Yes, I truly intend to reach everyone. Don't make me specify more values because I have already truly considered my audience."

1.4.3 private

visibility:
- private
- scratchpaper
# …

Function Used to indicate that access is strictly limited to those named as author(s).

Explanation It can be useful to make sure that the document is not accidentally published. However, using private as the only value for visibility is strongly discouraged. Applications implementing this specification should show a warning if that is the case. This is to encourage authors to consider the reason why the document is private. Authors may use values such as externalization, catharsis, rant, scratchpaper, or others to indicate the reason why the document is private.

1.4.4 disposable

visibility:
- coworker1
- disposable
# …

Function Used to indicate that the document is ephemeral and is intended to be deleted without negative consequences.

Explanation Useful for very sensitive information, or for AA-style write-then-burn cathartic writing. Obviously be very careful with this value.

1.5 format

Markdown link pointing to the specification that defines how to parse this document's content. Can also be a list to allow for a certain format with extensions (for example, CommonMark with table, footnote, and callout extensions).

format: "[CommonMark (Markdown)](https://spec.commonmark.org/0.31.2/)"
# alternatively…
format: "[](./style-guide.md)" # custom
format:
- "[CommonMark (Markdown)](https://spec.commonmark.org/0.31.2/)"
- "[](./custom-extension.md)"
format: "[GitHub Flavored Markdown (GFM)](https://github.github.com/gfm/)"

1.6 reachable

The purpose of this property is to show where this document is accessible, so it can be easily shared.

For public documents, this can be a URL or PID— some kind of clickable link that takes you to the document. The purpose of this property is to give a reader a way to share the document without copying and sending the entire document. So it should either be a reliable reference, or if the document is not public, perhaps contact information for the author of the document.

reachable: https://www.example.com
# or, perhaps for a non-public document…
reachable: johndoe@email.com

For private documents, this can be a file path, a cloud/backup service, or similar. Values like none are discouraged because of the possibility that even private writing may be shared in the future, or the possibility that an author might lose a note and recover it after a long time. It is nevertheless left to the author's discretion.

2.0 Optional Properties

2.1 contents

Specifies child documents that this file organizes.

contents:
  - "[Chapter One](chapter-01.md)"
  - "[Chapter Two](chapter-02.md)"

Format rules:

2.2 part_of

Specifies parent index files that contain/organize this document.

# Single parent
part_of: "[](<GoCoEdit files.md>)"

# Multiple parents
part_of:
  - "[](<GoCoEdit files.md>)"
  - "[](<Creative Writing.md>)"

Format rules:

2.3 version

A version number for the document, in case you want to record formal version updates. This specification has an example at the top.

2.4 copying

Used for showing users the ways they are allowed to copy the document. Can be a file path to a license file, or a link to a popular license, such as https://creativecommons.org/licenses/by/4.0/. This specification has an example at the top.

2.5 checksums

File path to checksums. Useful for verifying file downloads.

2.6 banner

Used for specifying an optional Notion-style image banner over a file. Link to image, or alternatively use !(alias)[<link>] syntax.

2.7 language

Used for specifying the language this file is written in.

2.8 tags, aliases

Both of these are lists of arbitrary strings. tags is used for assigning topics or organization groups to entries. aliases is used to specify other names this entry could go by.

tags: ["notes","thoughts"] #any string you want, as many as you want
aliases: ["That one note", "my favorite note"]

2.9 this_file_is_root_index

Flag indicating whether this file serves as the root index for a collection. If a file uses this property, it must also use the contents property. If present, must be true.

this_file_is_root_index: true   # This is the main organizational hub

2.10 starred

Flag indicating that this file has been designated by the author to be part of a special first-class group of documents. If present, must be true.

2.11 pinned

Flag indicating that this file has been designated as requiring a prominent, visible spot in the UI.

3.0 Additional Optional Properties

For additional optional properties, see the following:

4.0 Error Handling

If the YAML frontmatter is malformed, it may not be parsed and the Diaryx-formatted file is invalid.

If any of the required properties are missing pr invalid, the whole Diaryx file is invalid.

If the YAML is valid and required properties are present and valid, but some optional properties do not adhere to rules in the specification (for example, an invalid range or unit), that specific property is invalid, but the Diaryx formatted file is otherwise valid.

5.0 Contribution and Extensibility

The Diaryx Writing Specification is currently hosted on GitHub. To propose a change, please submit an issue or a pull request. Generally, it is recommended to submit an issue before submitting a pull request, so discussions can be made before proposing changes.

The Diaryx Writing Specification does not expressly prohibit additional YAML properties not in the specification, so it should be compatible with existing, more specific needs. If you have a workflow or use-case that you feel other authors would benefit from, please submit an issue or contact me at adam@diaryx.net.

Appendix A — Optional Properties — Health

For those who use journaling to track their health, Diaryx has optional support for a wide array of health metrics: mood, activity, sleep, vitals, and nutrition.

A.1 mood

One-word description of feeling.

mood: "content" # :-)
mood: "calm" # :)
mood: "numb" # :|

A.2 mood_scale

Rating of feeling from one to ten.

mood_scale: "8/10" #feeling pretty good!
mood_scale: "3/10" #feeling sad :(
mood_scale: "11/10" #invalid, too high
mood_scale: "1/5" #invalid, must be out of 10

A.3 activity_distance

If an activity you are doing takes place over distance, you can record the distance here. Supported units include mi, km, yd, and m.

activity_distance: "2mi" # nice run!
activity_distance: "1.2 km" #good job! (space between number and unit is optional)
activity_distance: "5 parsecs" #invalid unit

A.4 activity_type

Record the type of activity you are doing here.

activity_type: "running" # going fast!
activity_type: "HIIT" # working hard!
activity_type: "dance" # got moves?

A.5 calories_burned

If you track the number of calories you burn during an activity, you can record it here.

calories_burned: 1 #did you move today?
calories_burned: 1000 #wow, slow down
calories_burned: -5 #invalid, must be >0

A.6 steps

If you track a number of steps you take, you can record that number here.

steps: 100 #sedentary
steps: 20000 #many
steps: -100 #invalid, must be >0

A.7 sleep_hours

Record the number of hours you sleep here. Single floating-point or integer number.

sleep_hours: 8 # good sleep!
sleep_hours: 7.5 #realistic
sleep_hours: 1.45 #invalid, only one decimal allowed
sleep_hours: -3 #invalid, must be >0

A.8 sleep_scale

Rate the quality of your sleep from 1 to 10. Same rules as mood_scale

A.9 blood_pressure

Record systolic and diastolic blood pressure in the format similar to 120/80

blood_pressure: "140/100" #high
blood_pressure: "120.1/80.7" #invalid, only integers
blood_pressure: "120 / 80" # spaces are optional
blood_pressure: "120-80" #invalid, must be a /

A.10 heart_rate

Record heart rate in beats per minute (bpm). Integer.

heart_rate: 60 #resting rate
heart_rate: 400 #hummingbird
heart_rate: -80 #invalid, must be >0

A.11 body_weight

Record your body weight. Floating point number or integer. Supports two units: lbs and kg

body_weight: "130lbs" #average woman
body_weight: "185 lbs" # space optional
body_weight: "55kg" #artemis fowl

A.12 calories_consumed

Record the number of calories consumed, for those who count their calories. Integer >0.

calories_consumed: 2000 #recommended daily amount

A.13 carbs_consumed

Count the gram amount of carbohydrates consumed. Integer >0.

A.14 fats_consumed

Count the gram amount of fat consumed. Integer >0.

A.15 proteins_consumed

Count the gram amount of protein consumed. Integer >0.

A.16 water_consumed

Count the amount of water consumed. Supports four units: glasses, cups, grams, and liters.

water_consumed: "8 glasses" #good job!
water_consumed: "1liter" #thirsty! Space optional, `liter` is valid when the number is 1

Appendix B — Optional Properties — Location

For those who use journaling to log their travels, Diaryx has optional support for location data, including coordinates, location, and position.

B.1 coordinates

This property is a comma-separated pair of floating point decimals, representing geographic coordinates. Degree sign (º) and letter indicators (N/S, E/W) are optional. Assumes the global WGS 84 datum.

coordinates: "43.72309° N, 10.39657° E" # Leaning tower of Pisa!
coordinates: "-33.85684, 151.21510" # Sydney opera house!
# North/east = positive, south/west = negative

B.2 location

This property is a string of text representing an address. Due to the widely varying nature of mailing/residental addresses, there is no standardized format for this property. A good rule of thumb is that a person should be able to copy/paste this value into a digital map and be able to find the location you are referring to.

location: "1 Infinite Loop, Cupertino, CA  95014, United States"
location: "Great Pyramid of Giza, Giza, Egypt"
location: "40 Sejong-daero, Jung-gu, Seoul 04528, South Korea"

B.3 position

This property is meant to include more specific information about location, such as a room in a house, a position on a chair, or a floor in a building.

position: "bedroom"
position: "sitting on chair"
position: "3rd floor"

Appendix C — Optional Properties — Weather

For those who log the weather in their journal, Diaryx has optional support for weather metadata. For now, this is supported in only one property.

C.1 weather

This property is an enumerated value from a list taken from Open Weather Map. The value in the weather property may be any of the following, or up to four separate values containing no more than one value from each section:

C.1.1 Thunderstorms

thunderstorm with light rain
thunderstorm with rain
thunderstorm with heavy rain
light thunderstorm
thunderstorm
heavy thunderstorm
ragged thunderstorm
thunderstorm with light drizzle
thunderstorm with drizzle
thunderstorm with heavy drizzle

C.1.2 Precipitation

light intensity drizzle
drizzle
heavy intensity drizzle
light intensity drizzle rain
drizzle rain
heavy intensity drizzle rain
shower rain and drizzle
heavy shower rain and drizzle
shower drizzle
light rain
moderate rain
heavy intensity rain
very heavy rain
extreme rain
freezing rain
light intensity shower rain
shower rain
heavy intensity shower rain
ragged shower rain
light snow
snow
heavy snow
sleet
light shower sleet
shower sleet
light rain and snow
rain and snow
light shower snow
shower snow
heavy shower snow

C.1.3 Special

mist
smoke
haze
sand/dust whirls
fog
sand
dust
volcanic ash
squalls
tornado

C.1.4 Cloud cover

clear sky
few clouds: 11-25%
scattered clouds: 25-50%
broken clouds: 51-84%
overcast clouds: 85-100%

C.1.5 Example

weather: "thunderstorm" # it was a dark and stormy night…
weather:
- "thunderstorm" # Or perhaps it was stormy…
- "snow" # AND snowy…
- "smoke" # And smokey?
- "scattered clouds: 25-50%" # And only half-covered?

What about more weather information?

Values such as sunset/sunrise times, moon phase, and length of day can be calculated from the location and time of your entry.

Appendix D — Optional Properties — Device Information

For those who want to track which files were created on which device, Diaryx has optional support for device information properties. These properties have a soft-standardization: specific strings in them will be recognized, but there is no specific schema for them.

D.1 created_on_hardware

This property is used to specify what kind of hardware this file was created on. For detailed information, you may use key-values separated by semicolons. You may also include a list of options to indicate that this entry was created through multiple devices.

# general devices
created_on_hardware: "phone"
created_on_hardware: "laptop"
created_on_hardware: "desktop"
created_on_hardware: "tablet"
created_on_hardware: "e-reader"
created_on_hardware: "watch"
created_on_hardware: "other" # not recommended. Prefer leaving the property out entirely

# specific devices
created_on_hardware: "Adam's Laptop; Model Identifier: Mac15,6" # supported; "laptop" will be identified

created_on_hardware: # multiple entries supported
- "Adam's Laptop"
- "Adam's Phone"
- "Adam's Tablet"

D.2 created_on_software

This property is used to specify which software this file was created with.

created_on_software: "[Diaryx](https://www.diaryx.net)"
created_on_software: # mutliple entries supported
- "Diaryx"
- "Neovim"
- "Obsidian"
